CPLD (Complex Programmable Logic Device) is a complex user-programmable logic device that uses a continuous connection structure. This structure makes it easy to predict delays, making circuit simulation more accurate. CPLD is a standard large-scale integrated circuit product that can be used in the design of various digital logic systems. In recent years, due to the use of advanced integration processes and mass production, the cost of CPLD devices has continued to decline, and the integration density, speed and performance have been greatly improved. A single chip can realize a complex digital circuit system; coupled with easy-to-use development tools, the use of CPLD devices can greatly shorten the product development cycle and bring great convenience to design and modification [1]. This article takes the MAX7000 series of ALTERA as an example to realize parallel communication between the MCS51 microcontroller and the PC104 ISA bus. Using this communication method, data transmission is accurate and high-speed. In the data acquisition system controlled by the MCS51 microcontroller with a 12 MHz crystal oscillator, it can meet the requirements of real-time communication with the PC104 ISA bus interface, and the communication rate reaches 200 Kbps.

　　1 Overall system design

　　This system uses CLPD to realize parallel communication between the microcontroller and the PC104 ISA bus interface. Since PC104 mainly completes other data collection work and can only receive data sent by the microcontroller when it is idle, the real-time communication between the two parties is required to be very strong, but the amount of data is not large. Therefore, in the system design, the microcontroller receives data in interrupt mode, and PC104 receives data in query mode. The system design is shown in Figure 1.

　　In the microcontroller part of Figure 1, D[0..7] is the data bus, A[0..15] is the address bus, RD and WR are the read and write signal lines respectively, and INT0 is the external interrupt of the microcontroller. When the external interrupt signal of the microcontroller is valid, the microcontroller receives data.

　　In the CPLD part, a MAX7000 series EPM7128LSC84 is used to complete the data transmission, status query and delay waiting between MCS51 and PC104ISA bus interface.

　　In the PC104 ISA part, only the ISA 8-bit data bus D[0..7] is used, and A[0..9] is the address bus of PC104; IOW and IOR are read and write signals for the specified device; AEN allows DMA to control the address bus, data bus and read and write command lines for DMA transfer, as well as read and write of memory and I/O devices; IOCHRDY is the I/O ready signal, and the I/O channel ready is high. At this time, the memory read and write cycle generated by the processor is 4 clock cycles, and the generated I/O read and write cycle and DMA byte transfer require 5 clock cycles. MCS51 inserts a wait cycle into the CPU by setting this signal to a low level, thereby extending the I/O cycle; SYSCLK is the system clock signal, which is used to keep in sync with external devices; RESETDR is the power-on reset or system initialization logic, and is the system total clear signal.　　2 Hardware implementation based on MAX+plus II

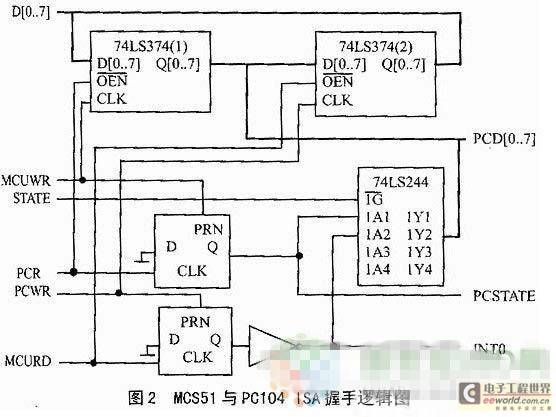

　　This system uses the CPLD development tool MAX+plusII of ALTERA. It supports multiple input methods, which provides great convenience for design and development. The main part of the system still uses the schematic input method. Since the current chips are provided in the library, it is very convenient to use. The schematic input part is shown in Figure 2 and Figure 3. Figure 2 mainly completes the data transmission and handshake judgment in the communication between the microcontroller and the ISA interface.

　　D[0..7] 8-bit bidirectional data bus of the microcontroller;

　　PCD[0..7] 8-bit bidirectional data bus of ISA interface;

　　PCRD ISA interface read valid signal;

　　PCWR ISA interface write valid signal;

　　Determine whether the microcontroller has written data or read data;

　　PCSTATE The microcontroller uses this to query the ISA interface to take away data;

　　MSCRD microcontroller read valid signal;

　　MCSWR microcontroller write valid signal;

　　INT0: external interrupt signal of the microcontroller;

　　When the MCUWR signal is valid, the microcontroller latches the data in 74LS374 (1). At this time, PCSTATE becomes high. PC104 uses the STATE signal to select 74LS244 to determine whether the data bit PCD0 is high. If it is high, it means that the microcontroller has sent data, so PCRD is enabled and the data is taken from the data memory 74LS374 (1). At this time, PCSTATE becomes low. The microcontroller determines that PC104 has taken the data by judging that this signal is low, and can send the next data.

　　When the PCWR signal is valid, PC104 latches the data in 74LS374 (2). At this time, INT0 becomes low, and the microcontroller generates an external interrupt, making the MCSRD signal valid, taking out the decoration from the data latch 74LS374 (2), and INT0 becomes high. PC104 uses the STATE signal to select 74LS244 to determine whether the data bit PCD1 is high. If it is high, it means that the microcontroller has taken the data and can send the next data. The most critical issue for PC104 to communicate with the microcontroller is speed matching. Since the speed of PC104 is fast and the speed of the microcontroller is slow, a wait cycle must be inserted at the IOCHRDY of PC104, as shown in Figure 3.

　　IOCHRDY is used to make the ISA interface wait for 5 clock cycles;

　　DLY_D delay input signal;

　　DLY_CK Delay wait clock

　　DLY_CLR waits for the clear signal to prepare for the next data transmission cycle;

　　DELAY delays the output signal by 5 clock cycles and serves as the input of the DLY_CLR signal;

　　SYSCLK System clock signal of the ISA interface.

　　During the communication between MCS51 and PC104, the DLY_D signal is always valid (high level). Under the action of the signal SYSCLK, the DELAY signal is valid once every 5 clock cycles, that is, it is high level. At this time, the DLY_CLR signal is valid (low level), the IOCHRDY signal becomes high level, and PC104 can read and write data.

　　The address decoding part uses text input, using ALTERA's hardware design and development language AHDL (Altera Hardware Description Language). AHDL is a modular high-level language that is fully integrated into the MAX+plusII system and is particularly suitable for describing complex combinational logic, state machines, and truth tables. The address decoding part uses text input, which fully demonstrates the advantages of text input. The text input content is as follows: SUBDESIGN Address

　　(PCA[9..0] : INPUT;

　　AEN,IOR,IOW : INPUT;

　　RESETDR,DELAY : INPUT;

　　A[15..14] ：INPUT;

　　RD,WR : INPUT;

　　DLY_D : OUTPUT;

　　DLY_CK : OUTPUT;

　　DLY_CLR : OUTPUT;

　　STATE : OUTPUT;

　　PCRD : OUTPUT;

　　PCWR : OUTPUT;

　　MCURD : OUTPUT;

　　MCUWR: OUTPUT;)

　　BEGIN

　　!DLY_CLR=RESETDR#DELAY;

　　DLY_D=!AEN & (PCA[9..1]= =H"110");

　　DLY_CK=!AEN & (PCA[9..1]= =H"110")&(!IOR # ! IOW);

　　!PCWR=!AEN&(PCA[9..0]= =H"220")& !IOW;!PCRD=!AEN&(PCA[9..0]= =H"220")& !IOR;

　　!STATE=!AEN&(PCA[9..0]= =H"221")&!IOR;

　　!MCSRD=([15..14]= =H"1")& !RD;

　　!MCSWR=(A[15..14]= =H"2"& !WR;

　　END;

　　Note: PCA[9..0] is the address signal of PC104, A[15..14] is the address signal of the microcontroller, and PC104 uses port addresses 220H and 221H.

　　3 Communication Software Design

　　PC104 is based on the ISA bus. Address conflicts must be avoided in system software design. PC104 uses address bits A0 to A9 to represent I/O port addresses, which means there are 1024 port addresses: the first 512 are used by the system board, and the last 512 are used by the expansion slot. When A9=0, it represents the port address on the system board; when A9=1, it represents the port address on the expansion slot interface card [2]. Therefore, the reserved port addresses 220H and 221H are used to ensure that address conflicts will not occur.

　　In this program, PC104 uses query mode to receive data, and the microcontroller uses interrupt mode to receive data.

　　#define pcreadwrite 0x220 /*PC104 read and write data port address*/

　　#define pcrdstate 0x221 /*PC104 query status port address*/

　　PC104 write data function:

　　{ outportb(pcreadwrite,ch);

　　while ((inportb(pcrdstate)&0x02)!=0x02); /*Wait for the MCU to read the data*/

　　{ }

　　}

　　MCU reading subroutine:

　　MCUWR: MOV DPTR, #4000H

　　MOVX A, @DPTR

　　RETI

　　PC104 read data function:

　　Unsigned char pcread(int port)

　　{ while((inportb(pcrdstate)&0x01)!=0x01);/*Wait for the MCU to write data*/

　　{}

　　return inportb(pcreadwrite);

　　}

　　MCU write subroutine:

　　MCUWR: MOV DPTR, #8000H

　　MOVX@DPTR,A

　　; Wait for PC104 to read data

　　RET

　　4 Conclusion

　　Using CPLD to realize parallel communication between single-chip microcomputer and ISA bus interface has simple circuit structure and small size. One CPLD chip is enough. It is easy to control, has strong real-time performance and high communication efficiency. This design method has been successfully applied to various data acquisition systems developed by the author, used as parallel data communication between single-chip microcomputer and PC104, and the effect is very ideal.
