Application of machine vision technology in engine production

In the cylinder head production workshop of DaimlerChrysler, the largest automobile manufacturer in Germany, the correctness of component assembly is checked by scanning QR codes with powerful and reliable vision sensors produced by Siemens. This technology ensures the traceability of components and has become an indispensable part of the quality management process.

Pilot, testing and certification of Simatic VS130-2u vision sensor in other application areas

Every day, DaimlerChrysler's Bad Canstatt engine plant in Untertürkheim, Stuttgart, Germany, produces about 1,600 two-speed V6 and V8 diesel engines. Among them, detailed information on the production process of 3,200 cylinder heads is recorded in a product history file prepared for each vehicle. The cylinders are first marked with a QR code before processing to make their identity unique.

The code contains the part number, production year, production date, serial number in the relevant production series, and leaves space for adding notes.

The detection error rate is greatly reduced

Previously, DaimlerChrysler had been using cameras for code detection.

However, the error rate of camera scanning sometimes reached more than 10%, far exceeding the quality standards set by the company. In addition, in order to read the code, it was necessary to clean the residual oil on the surface of the cylinder head. As a result, the camera itself was also contaminated with oil, and the staff had to clean it every day. In order to solve these problems, the company's production planning department decided to use Siemens' Simatic VS130-2 vision sensor to replace the existing camera inspection system.

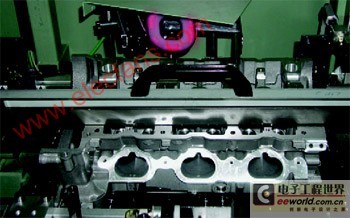

"We are surprised that since we used the VS130-2, the scanning error rate has been greatly reduced, and even the oil stains on the surface of the QR code do not need to be cleaned." Ralf Blesch, who is responsible for the production of cylinder heads in Bad Canstatt, said. "Through close cooperation with Siemens, we have successfully controlled the scanning error rate permanently between 0.1% and 0.5%. And we no longer need to clean the oil stains all the time, which saves us more energy and investment costs." Bernd Hofacker, who is responsible for production planning, added. Now, the camera head is only cleaned once a week with the machine as a whole. Since mid-2005, a total of 10 sets of VS130-2 machine vision sensors have been used in the Bad Canstatt cylinder head production workshop. The cylinder heads must be newly identified after passing through all processing centers. The specific method is to install the camera in the diagonal direction of the scanning surface. In order to ensure sufficient light, a circle of LED lights is installed on the camera.

Ralf Blesch explained: "In order to prevent occlusion and reflection caused by oil stains, we designed the lighting unit separately and adjusted it to the appropriate angle." At the same time, Siemens has improved the sensor according to the trial results of DaimlerChrysler. Now, the camera can select any part of the image to shoot, instead of only shooting the whole as before. This new technology has now become the standard configuration of VS130-2, which further reduces the scanning error rate of the system. Now, once an image error is detected, the system can determine whether it is caused by a label error or dirt.

Image capture and analysis in one system

The system can capture the entire static image with the automatic exposure setting through its own CCD chip. The correct recognition of each DMC point only requires five pixels, so the system is extremely flexible. By selecting different optical systems, the image point size and scanning distance can be defined, and a large range can be defined.

After scanning, VS130-2 can transmit the captured image to a separate analysis unit. In order to prevent oil contamination and protect the chip, the analysis unit is installed slightly higher than the sensor.

After the image is analyzed, the resulting data string will be transmitted via DP to the Sinumerik 840D machine controller or Simatic S7-300 in the machining center. The new system can be effortlessly integrated into the existing communication structure, and the analyzed image is displayed on the control panel of the production line in "real time". In addition, the system can also learn new codes by teaching. With VS130-2, users will no longer have to deal with complex production planning or parameterization work, but only need to configure the lighting and teach the algorithm, without having to make user settings in code.

Flexible access methods make the testing process open and transparent

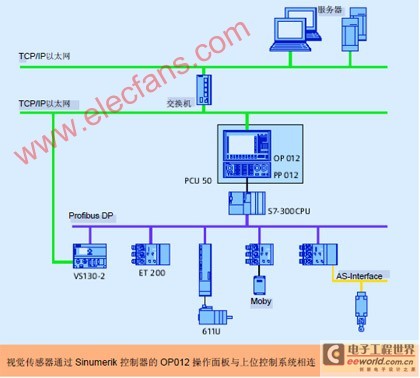

The visual sensor can also be connected to the host system through the OP012 operation panel of the Sinumerik controller, which captures machine and operation data and enters it into the product history file. The system uses the Transline 2000 human-machine interface system developed by DaimlerChrysler and Siemens to communicate via Ethernet. The staff can access the stored fault images and camera live images through any connected terminal, and the access rights can be controlled by password.

Muller-Chrysler believes that another advantage of the system is that in the future the camera system as a standard open interface can be configured throughout the company via a WEB browser. Direct access to the image not only allows operators to monitor all functions directly from their desktop, but also speeds up the commissioning of DMC scanners as long as the position of the lighting unit can be monitored online and optimized as needed. In "Code Quality Access" mode, the system can also detect whether the label is working properly or whether there is a problem with the code itself.
