In the past, LED manufacturers have developed large-size LED chips to achieve their desired goals in order to obtain sufficient white light LED beams . However, in reality, when the applied power of white light LEDs exceeds 1W, the beam will decrease, and the luminous efficiency will decrease by 20~30%. In other words, if the brightness of white light LEDs is to be several times greater than that of traditional LEDs and the power consumption characteristics are to exceed those of fluorescent lamps, the following four major issues must be overcome: suppressing temperature rise, ensuring service life, improving luminous efficiency, and equalizing luminous characteristics.

  The solution to the temperature rise problem is to reduce the thermal impedance of the package; the way to maintain the service life of the LED is to improve the chip shape and use small chips; the way to improve the luminous efficiency of the LED is to improve the chip structure and use small chips; as for the way to uniformize the luminous characteristics, it is to improve the LED packaging method. These methods have been developed one after another.

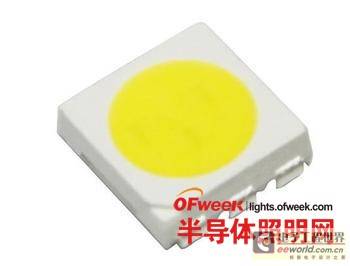

How to solve the temperature rise problem of white light LED

  Solving the heat dissipation problem of packaging is the fundamental solution

  Since increasing power will cause the thermal impedance of the package to drop sharply below 10K/W, foreign companies have developed high-temperature resistant white light LEDs in an attempt to improve the above problem. However, in fact, the heat generated by high-power LEDs is more than ten times higher than that of low-power LEDs, and the temperature rise will also cause a significant drop in luminous efficiency. Even if the packaging technology allows high heat, the junction temperature of the LED chip may exceed the allowable value. Finally, the industry finally realized that solving the heat dissipation problem of the package is the fundamental solution.

  Regarding the service life of LEDs, for example, the use of silicon packaging materials and ceramic packaging materials can increase the service life of LEDs by single digits, especially since the emission spectrum of white light LEDs contains short-wavelength light with a wavelength below 450nm. Traditional epoxy resin packaging materials are easily damaged by short-wavelength light. The large amount of light from high-power white light LEDs accelerates the degradation of packaging materials. According to industry test results, the brightness of high-power white light LEDs has been reduced by more than half if the lighting is continuously turned on for less than 10,000 hours, which cannot meet the basic requirement of long life of lighting sources.

  Regarding the luminous efficiency of LEDs, improving the chip structure and packaging structure can achieve the same level as low-power white light LEDs. The main reason is that when the current density is increased by more than 2 times, it is not only difficult to extract light from large chips, but the result will be a dilemma that the luminous efficiency is not as good as low-power white light LEDs. If the electrode structure of the chip is improved, the above light extraction problem can be solved in theory.  Try to reduce thermal impedance and improve heat dissipation problems

  Regarding the uniformity of luminous properties, it is generally believed that the above problems can be overcome by improving the uniformity of the phosphor material concentration of white light LEDs and the phosphor manufacturing technology. As mentioned above, while increasing the applied power, it is necessary to find ways to reduce thermal impedance and improve heat dissipation. The specific contents are: reducing the thermal impedance from the chip to the package, suppressing the thermal impedance from the package to the printed circuit board, and improving the heat dissipation smoothness of the chip.

  In order to reduce thermal impedance, many foreign LED manufacturers place LED chips on the surface of heat sinks made of copper and ceramic materials, and then use welding to connect the heat dissipation wires of the printed circuit board to the heat sink that uses a cooling fan to force air cooling. According to the experimental results of OSRAM Opto Semiconductors GmbH in Germany, the thermal impedance of the LED chip to the welding point of the above structure can be reduced by 9K/W, which is about 1/6 of that of traditional LEDs. When 2W of power is applied to the packaged LED, the junction temperature of the LED chip is 18K higher than the welding point. Even if the temperature of the printed circuit board rises to 50℃, the junction temperature is only about 70℃ at most; in contrast, once the thermal impedance is reduced, the junction temperature of the LED chip will be affected by the temperature of the printed circuit board. Therefore, it is necessary to try to reduce the temperature of the LED chip. In other words, reducing the thermal impedance from the LED chip to the welding point can effectively reduce the burden of the LED chip cooling effect. On the other hand, even if the white light LED has a structure that suppresses thermal impedance, if the heat cannot be transferred from the package to the printed circuit board, the result of the LED temperature rise will still cause a sharp drop in luminous efficiency. Therefore, Panasonic Electric has developed a technology to integrate printed circuit boards and packaging. The company packaged 1mm square blue light LEDs on a ceramic substrate using a flip chip method, and then pasted the ceramic substrate on the surface of a copper printed circuit board. According to Panasonic's report, the thermal impedance of the entire module including the printed circuit board is about 15K/W.

  Various industry players demonstrate their thermal design skills

  Since the compactness between the heat sink and the printed circuit board directly affects the heat conduction effect, the design of the printed circuit board becomes very complicated. In view of this, lighting equipment and LED packaging manufacturers such as Lumileds in the United States and CITIZEN in Japan have successively developed simple heat dissipation technology for high-power LEDs. CITIZEN began to manufacture white light LED sample packaging in 2004. It can directly discharge the heat of the heat sink of about 2~3mm thickness to the outside without special bonding technology. According to the CITIZEN report, although the 30K/W thermal impedance from the junction of the LED chip to the heat sink is larger than the 9K/W of OSRAM, and the room temperature in a general environment will increase the thermal impedance by about 1W, even if the traditional printed circuit board is forced to cool without a cooling fan, the white light LED module can be used continuously.

  Lumileds began to manufacture high-power LED chips in 2005, with a junction allowable temperature of up to +185°C, 60°C higher than other companies' products of the same level. When using the traditional RF4 printed circuit board package, the ambient temperature can be within 40°C. The input current is equivalent to 1.5W of electricity (about 400mA). Therefore, Lumileds and CITIZEN have adopted the method of increasing the junction allowable temperature, while the German OSRAM company has set the LED chip on the surface of the heat sink, achieving an ultra-low thermal impedance record of 9K/W, which is 40% lower than the thermal impedance of OSRAM's previous products of the same level. It is worth mentioning that when the LED module is packaged, the flipchip method is used in the same way as the traditional method, but when the LED module is bonded to the heat sink, the closest to the LED chip light-emitting layer is selected as the junction surface, so that the heat of the light-emitting layer can be conducted and discharged at the shortest distance. In 2003, Toshiba Lighting once laid a 60lm/W low thermal impedance white light LED on a 400mm square aluminum alloy surface, and trial-produced an LED module with a beam of 300lm without special heat dissipation components such as cooling fans. As Toshiba Lighting has rich trial production experience, the company said that due to the advancement of simulation analysis technology, white light LEDs exceeding 60lm/W after 2006 can easily use lamps and frames to improve thermal conductivity, or use cooling fans to force air cooling to design the heat dissipation of lighting equipment. Module structures that do not require special heat dissipation technology can also use white light LEDs.

  Changing the packaging material to reduce the rate of material degradation and light transmittance reduction

  Regarding the longevity of LEDs, the current countermeasures taken by LED manufacturers are to change the packaging materials and disperse the fluorescent materials in the packaging materials. In particular, the silicone packaging materials can more effectively suppress the degradation of materials and the speed of light transmittance reduction than the epoxy resin packaging materials on the traditional blue light and near-ultraviolet light LED chips . Since the percentage of epoxy resin absorbing light with a wavelength of 400~450nm is as high as 45%, while the silicone packaging material is less than 1%, the time for epoxy resin to halve the brightness is less than 10,000 hours, while the silicone packaging material can be extended to about 40,000 hours, which is almost the same as the design life of the lighting equipment. This means that the white light LED does not need to be replaced during the use of the lighting equipment. However, silicone resin is a highly elastic and soft material, and the production technology that will not scratch the surface of silicone resin must be used during processing. In addition, silicone resin is very easy to adhere to powder during processing, so it is necessary to develop technologies that can improve surface properties in the future.

  Although silicon packaging materials can ensure the life of LEDs for 40,000 hours, lighting equipment manufacturers have different opinions. The main debate is that the life of traditional incandescent lamps and fluorescent lamps is defined as "the brightness drops below 30%." The time it takes for LEDs to halve in brightness is 40,000 hours. If the brightness drops below 30%, it will only be about 20,000 hours. There are currently two countermeasures to extend the life of components, namely, suppressing the overall temperature rise of white light LEDs and stopping the use of resin packaging.

  It is generally believed that if the above two life extension measures are thoroughly implemented, the requirement of 40,000 hours at 30% brightness can be achieved. The temperature rise of white light LEDs can be suppressed by cooling the LED package printed circuit board. The main reason is that the package resin will deteriorate rapidly when it is exposed to strong light under high temperature. According to the Arrhenius law, the life will be extended by 2 times if the temperature is reduced by 10°C. Stopping the use of resin packaging can completely eliminate the degradation factors, because the light generated by the LED is reflected in the package resin. If a resin reflector that can change the direction of light on the side of the chip is used, the reflector will absorb the light, causing the amount of light extracted to drop sharply. This is also the main reason why LED manufacturers consistently use ceramic and metal packaging materials.
