The influence of the power supply configured in the LED integrating sphere test system on the test

Introduction

As the laptop backlight that everyone is familiar with is composed of many LED lamp beads, the color difference problem is becoming more and more obvious. If the LED lamp beads used are not from the same batch, it is easy to cause problems such as different wavelengths and color differences. This problem is inevitable even if the LED lamp beads from the same batch are used. For the testing of LED chips, an integrating sphere test system is generally used.

Using an integrating sphere to measure parameters such as luminous flux can make the measurement results more reliable. The integrating sphere can reduce and eliminate errors caused by differences in the shape and divergence angle of light. Such high-precision and cautious measurements have also driven LED integrating sphere manufacturers to increasingly choose higher-performance power supplies to be configured in the system to power the LED to be tested.

LED integrating sphere test system

LED integrating spheres mainly measure parameters such as the luminous efficiency, color rendering and color difference of LED lamps, which characterize the performance indicators of LED light sources. In the daily large-scale testing of the production line, there are always two problems: one is how to improve the test efficiency and the other is how to better protect the LED to be tested during the measurement.

It is understood that in the current power supply industry, the total time from the power supply turning on to power the LED lamp to the software control system collecting stable voltage and current values ​​is about 600ms. Is there a possibility of breakthrough on this basis? The answer is yes. So what methods can be used to achieve it? In fact, the power supply configured in the system to power the LED to be tested plays a very important role.

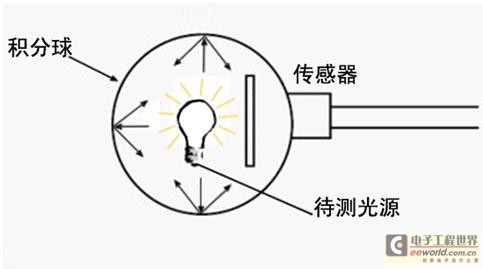

LED integrating sphere test system schematic diagram

1. Configuring a professional power supply can suppress overshoot and improve test efficiency.

At the moment of power on, due to the existence of the loop response time, the power supply output does not stop output when it reaches the set output voltage value. Therefore, during this period of time, the voltage will overshoot. Excessive overshoot voltage will affect the life of the LED, and even break down the LED in severe cases.

For low-power LED lamps, the constant current working current is usually between tens and hundreds of mA. When working at a low current, the current and voltage climbing speeds decrease accordingly. Sometimes, the time it takes to light up the LED is even longer than the time it takes to add up the time from normal power supply to the LED lamp to the time the software control system collects the stable voltage and current values.

In the face of the above two problems, if measures to improve the loop speed are taken to speed up the climbing speed and improve the test efficiency, it usually leads to more serious overshoot. However, if the overshoot problem is taken care of, the overall test efficiency will decrease. Such a problem can be solved by configuring a power supply for professional LED testing. For example, the IT6874A power supply of ITECH can solve this problem. The following two figures are waveforms of the voltage rising stage when the IT6874A DC power supply powers 80V/20mA and 80V/400mA LEDs.

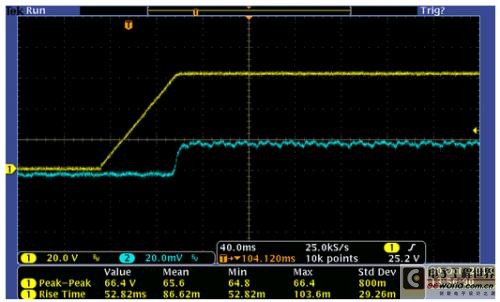

Figure 1: LED (80V/20mA) IT6874A ramp-up time: about 80ms

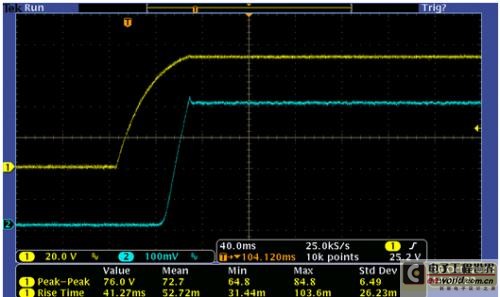

Figure 2: LED (80V/400mA) IT6874A ramp-up time: about 50ms

From the above figure, it can be seen that the IT6874A DC power supply of Itech can basically meet the test requirements of high speed and no overshoot within 100ms, while the general power supply takes about 600ms. The IT6874A DC power supply of Itech has increased this number by nearly 6 times, which is of great significance to the improvement of test efficiency.

2. Configuring a professional power supply makes the value collected by the integrating sphere test system more stable

When using the integrating sphere test, the stability of the power supply in the system is also very important. Stability is mainly reflected in:

(1) The error range of the power supply

When performing the integrating sphere test, if the accuracy of the power supply used is higher, the measured data will be closer to the true value during batch testing, and the deviation between the LEDs to be tested will also be more accurate. For example, when testing LED lamps, assuming that the allowable error range of the power supply readback value is 20mV, when measuring two LED lamps (theoretical rated indicators are both 350mA), the measured value of #1-LED may be 330mA, and the measured value of #2-LED may be 370mA. Assuming that the actual values ​​of these two LED lamps are both 352mA, it can be seen that the values ​​of 330mA and 370mA are far from the actual values, and also cause the performance indicators of the two LED lamps to deviate greatly. If a power supply with higher accuracy is used, assuming that the allowable error range of the voltage readback value is 10mV, the value obtained by testing the same two LED lamps may be between 342mV and 362mV, which is closer in value and can more truly reflect the performance indicators of a single LED lamp and the deviation range of consistency between multiple LEDs.

The voltage accuracy of the IT6874A series power supply of ITECH is as high as 0.5% and the current accuracy is as high as 0.1%. Such high accuracy can bring more accurate test results.

(2) Stability of collected values

​​What does stability of collected values ​​mean? Let's take an example. For example, the power supply can light up the LED lamp within 400ms (the parameters of the LED lamp to be tested are 80V/20mA). At this time, the voltage value collected by the integrating sphere test system software is 80.099V. When the LED lamp is turned off and turned on again, the value read by the software may be 82.152V. Therefore, using an oscilloscope alone, we can only see that the waveform rises to the rated current and voltage values, but it cannot guarantee that the values ​​collected by the software also reach a stable range. This will affect the test of LED lamp performance indicators during LED mass production testing due to the instability of the power supply value. Generally, software engineering developers will delay to 500-600ms to ensure the stability of the values ​​during continuous reading operations. Therefore, the time required for the integrating sphere test is about 600ms, rather than the 400ms measured by the oscilloscope.

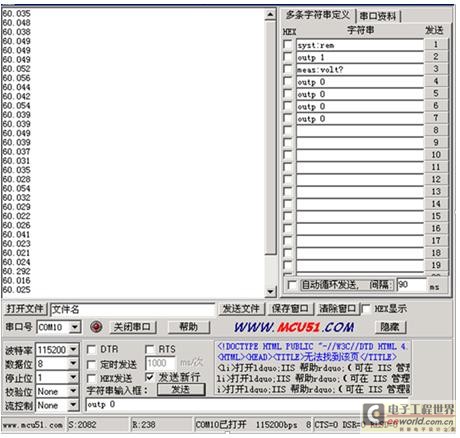

The ITECH IT6874A DC power supply can ensure that the time from lighting the LED lamp to reading the stable voltage and current values ​​is less than 150ms. IT6874A


measures LED lamp parameters: 60V/20mA takes about 150ms.

It can be seen that it is of great significance to configure a power supply professionally used for LED testing in the LED integrating sphere test system. The ITECH IT6874A DC power supply breaks through the defects of general power supplies in the LED integrating sphere test system, can perfectly suppress the overshoot at the start-up moment, and greatly improve the test efficiency.
